Symp 20W With Optical 70 MM

Led Projector

  • High efficiency

  • Brightness

  • Low consumption

Send a Request

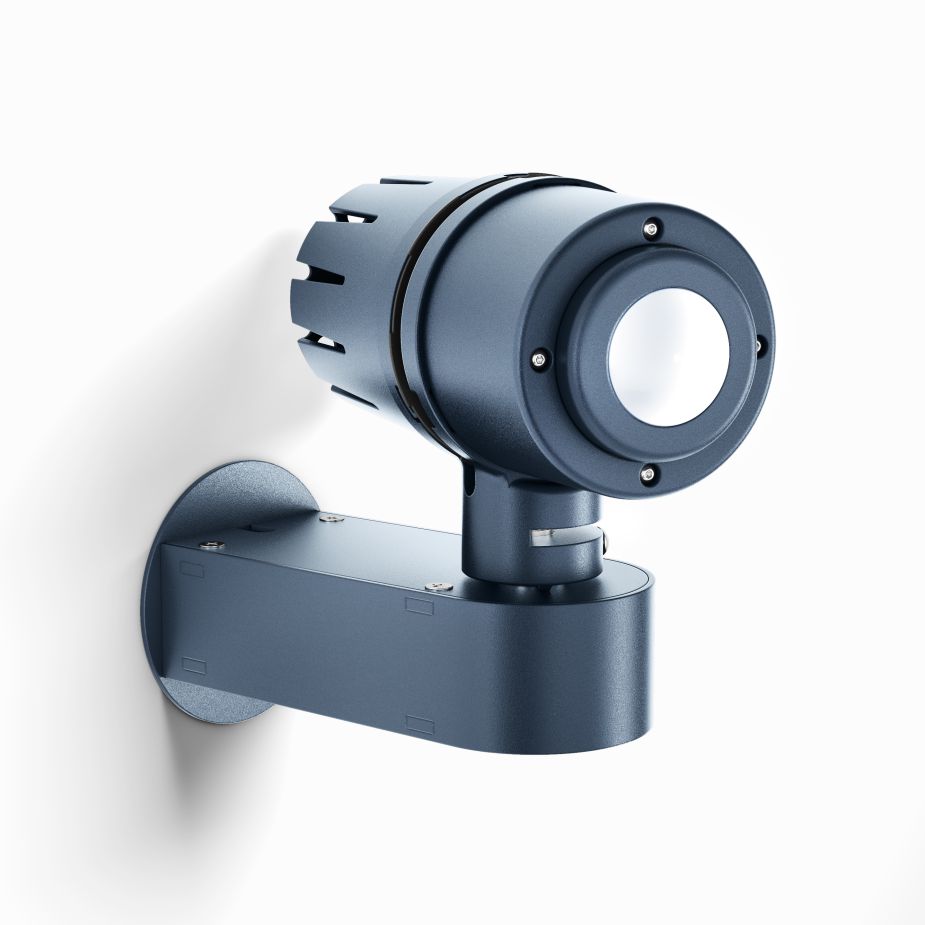

Symp 20W With Optical 70 MM

It is an ultra-compact LED gobo projector equipped with the latest 20 W LED, designed to enhance most indoor spaces and capable of creating intense emotions through images. Extremely easy to use, thanks to the unique gobo housing system (patented) that allows the gobo to be introduced, replaced and oriented without having to open the projector
body, it combines versatility with high aesthetic impact and small size. Symp is the perfect solution for decorative or functional lighting in museums, sports arenas, shopping malls, as well as architectural details in hospitality and retail. Available in wall or track versions, ready for DALI 2 and in two different optical configurations (30° and 24°). SYMP makes indoor gobo projection an exciting new lighting solution.

Features Of Projection

Type Of Projection

Signals

Projection Distance In Meters

From 0 to 3 meters

Tech Specs

Material

Aluminium + ABS

Protection Rating IP

IP20

Surface Finishing

Black Painting RAL 9005

Power Mode

110-240V 50/60Hz

Light Source

High efficiency White COB LED

Colour Temperature

5.000 °K

Gobo Size

I.D. ø30mm

Power

20W

Optical System

70 mm

Angular Aperture

24°

Optical Efficiency

24,1%

Total Lumen Output

718 lm

Luminous Efficacy

36 lm/W

Connections

  •  Controllable serial power supply with DALI 2 protocol and compatible with direct insertion into the dali network
  • Model compatible rail version: EUROSTANDARD PLUS® RAIL 6-conductor (9000-1-B-ST)

Weight

2 kg

Size

20.1x9x18.3 cm

FAQ

Are The Projectors Produced By You?

Yes, the projectors and the gobos are produced by us and are 100% Made in Italy.

How Can I Buy A Projector?

You can request a quote by sending an email to This email address is being protected from spambots. You need JavaScript enabled to view it..

Do I Need To Have Specific Technical Skills To Be Able To Use Your Products?

No, the use is very simple: just follow the instructions given in the instruction manual.

What Is The Warranty On Projectors?

The projectors have a 2-year warranty.

Before Buying Your Products, How Can I Ask for Advice?

You can contact us by e-mail at This email address is being protected from spambots. You need JavaScript enabled to view it. and by phone at +39 035 017 6860.

What Data Do I Need To Share To Have A Study Of My Projection Project?

In order to carry out the study of a projection project, it will be necessary to provide us with the following information:

  • The distance between the projector attachment point and the projection surface.
  • A photo of the projection surface.
  • The size of the area to be covered by the projection.
  • The ambient light level.
  • The graphics, if any, to be projected.
Do You Also Take Care Of The Graphic Creation Of The Projection?

If necessary, it is possible, as an additional service, to include the creation of the projection graphics in the offer.

Do You Also Take Care of The Installation?

Not directly.  Nonetheless, our network of partners may be of assistance in this regard.

Do You Have Local Dealers?

Yes. We have an ever - expanding network of partners and distributors.

How Do I Mount The Gobo On The Projector?

You will find mounting directions in your projector’s instruction manual.
We always ship a manual containing mounting instructions with our gobos.
To avoid damaging the gobo during use please follow the instructions below:

  • Mount the Black and White Gobos with the gray side facing the lens.
  • Mount the Color gobos with the black side facing the lens.
