Signum 75W With Optical 56 MM

Led Projector

  • High efficiency

  • Brightness

  • Low consumption

Send a Request

Gobo Safety projection of pedestrian crossing

stop projection

warning safety signage projection

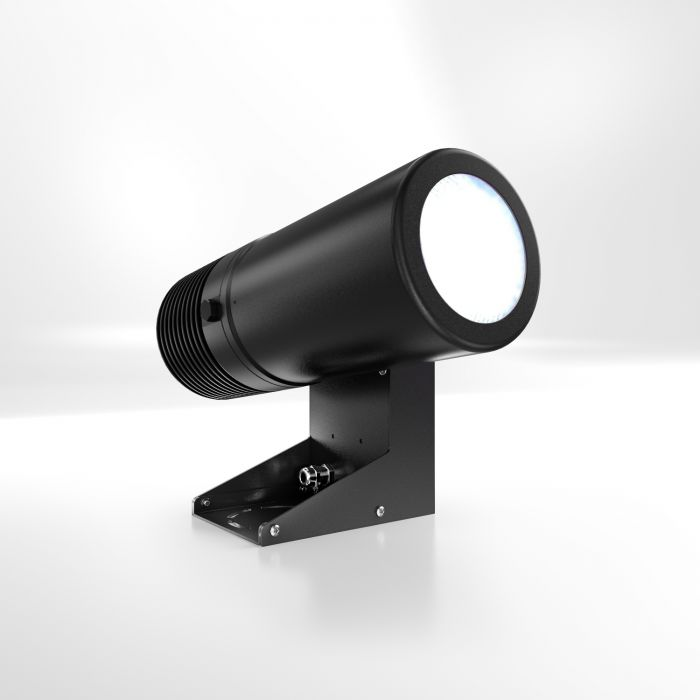

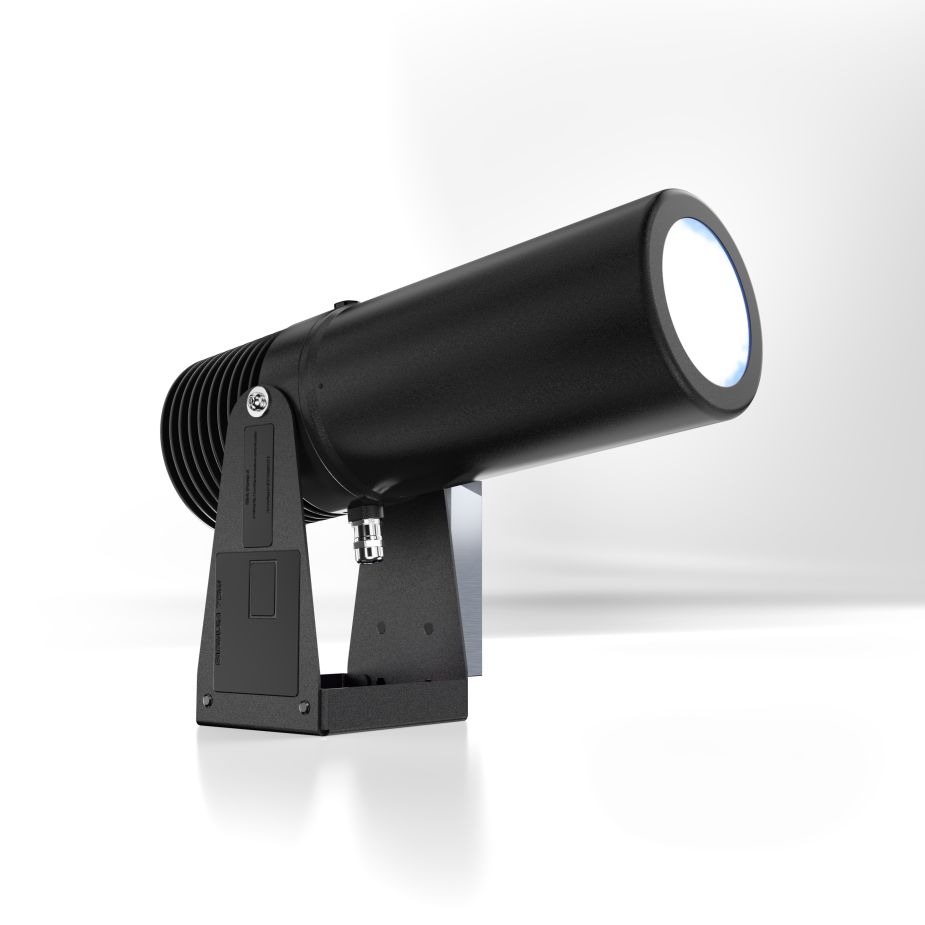

Signum 75W With Optical 56 MM

It is the very powerful and compact LED projector, specially designed for image projection under the toughest conditions (e.g. in permanent outdoor installations or in industrial environments). Thanks to its functional and innovative design, it also finds application in all those areas where it is necessary to project images, logos, signals, photos with high quality.
The absence of fans and the IP65 protection allow its use even in dusty environments or outdoors for extended periods of time, with a LED lifespan of 50,000 hours.

The Signum 75W with a 56mm lens is a very bright projector. Moreover, thanks to its wide-angle lens, it is suitable for projecting signs or pedestrian passages up to an indicative distance of 8 meters.

Features Of Projection

Type Of Projection

Signals and Pedestrian crossings

Projection Distance In Meters

From 0 to 8 meters

Tech Specs

Material

Alluminium

Protection Rating IP

IP65

Protection Rating IK

IK09

Surface Finishing

Black Painting RAL 9005

Power Mode

110-240V 50/60Hz

Light Source

CITILED COB

Colour Temperature

6.000 °K

Gobo Size

O.D. ø37,5mm - I.D. ø30mm

Power

75W

Source Luminous Flux

9.600 lm

Optical System

56 mm

Angular Aperture

32°

Maximum Brightness At 5m

900

Optical Efficiency

56%

Total Lumen Output

5.400 lm

Luminous Efficacy

72 lm/W

Optional

  • Controllable with Casambi system via Android and IOS app (power on/off - network creation - batch or individual
    control)
  • WIRELESS proximity sensor activation (network creation up to 32 units - operation under WIFI network or in the Cloud)
  • Compatible with DALI and DMX networking

Weight

6 kg

Size

40.8×11.5×19.1 cm

FAQ

Are The Projectors Produced By You?

Yes, the projectors and the gobos are produced by us and are 100% Made in Italy.

How Can I Buy A Projector?

You can request a quote by sending an email to This email address is being protected from spambots. You need JavaScript enabled to view it..

Do I Need To Have Specific Technical Skills To Be Able To Use Your Products?

No, the use is very simple: just follow the instructions given in the instruction manual.

What Is The Warranty On Projectors?

The projectors have a 2-year warranty.

Before Buying Your Products, How Can I Ask for Advice?

You can contact us by e-mail at This email address is being protected from spambots. You need JavaScript enabled to view it. and by phone at +39 035 017 6860.

What Data Do I Need To Share To Have A Study Of My Projection Project?

In order to carry out the study of a projection project, it will be necessary to provide us with the following information:

  • The distance between the projector attachment point and the projection surface.
  • A photo of the projection surface.
  • The size of the area to be covered by the projection.
  • The ambient light level.
  • The graphics, if any, to be projected.
Do You Also Take Care Of The Graphic Creation Of The Projection?

If necessary, it is possible, as an additional service, to include the creation of the projection graphics in the offer.

Do You Also Take Care of The Installation?

Not directly.  Nonetheless, our network of partners may be of assistance in this regard.

Do You Have Local Dealers?

Yes. We have an ever - expanding network of partners and distributors.

How Does A Gobo Projector Work?

The gobo-projectors are “light” projectors which, thanks to the insertion of a gobo inside them, generate the projection

How Do I Mount The Gobo On The Projector?

You will find mounting directions in your projector’s instruction manual.
We always ship a manual containing mounting instructions with our gobos.
To avoid damaging the gobo during use please follow the instructions below:

  • Mount the Black and White Gobos with the gray side facing the lens.
  • Mount the Color gobos with the black side facing the lens.
