Signum 100W With Optical 90 MM

Led Projector
  • High efficiency

  • Brightness

  • Low consumption

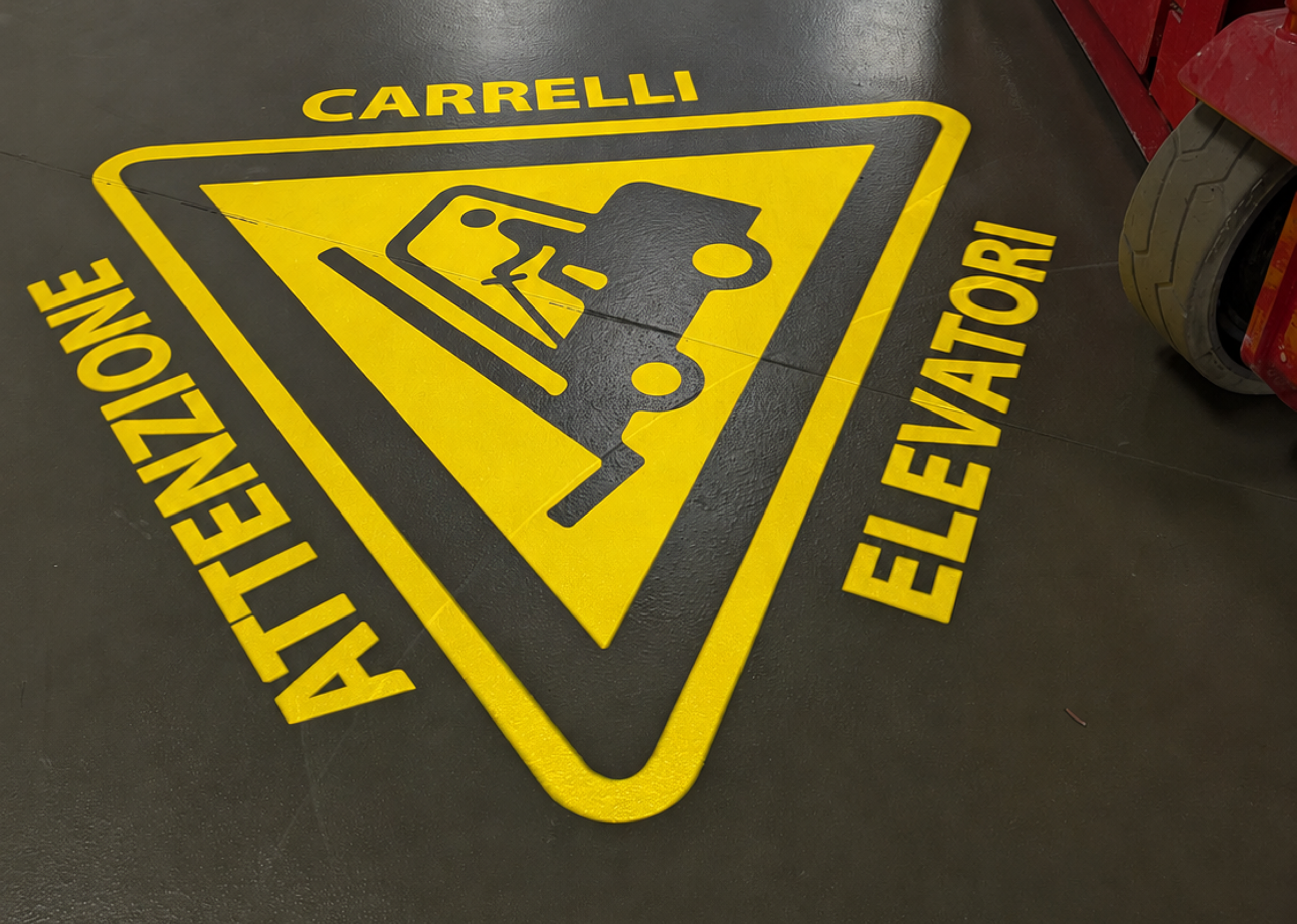

projected-floor-signage

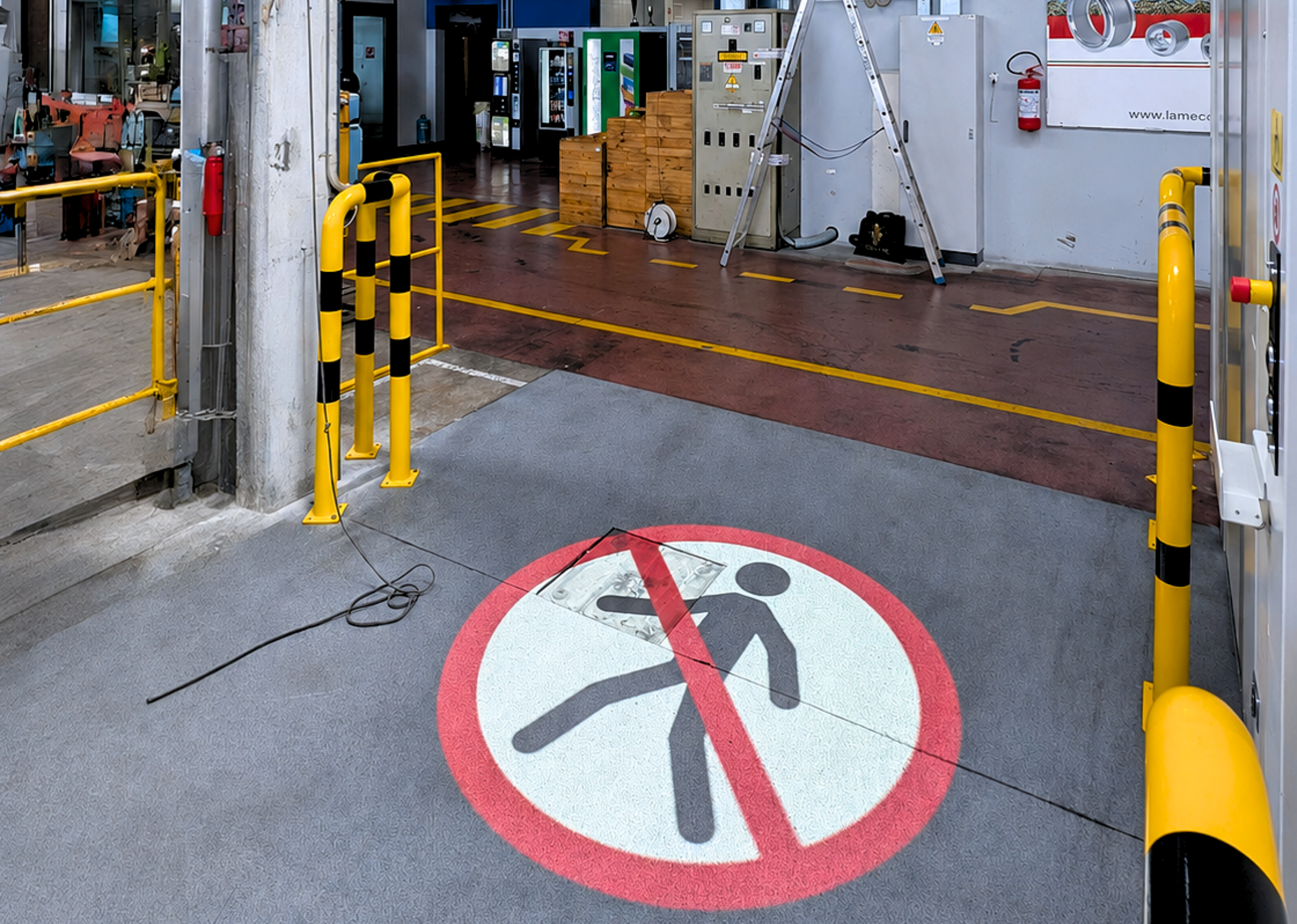

projected-pedestrian-stop-sign

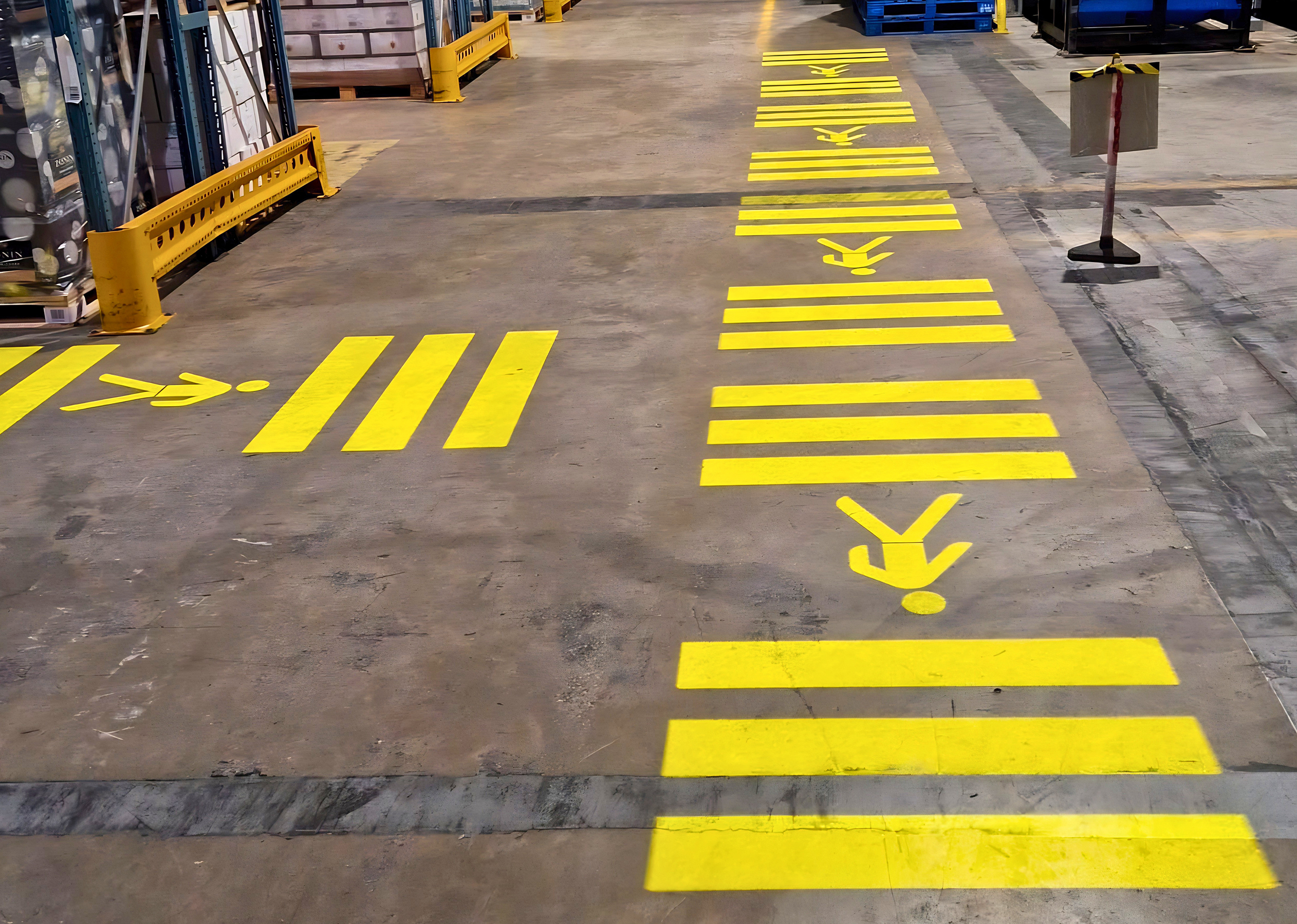

projected-pedestrian-crossing-warehouse

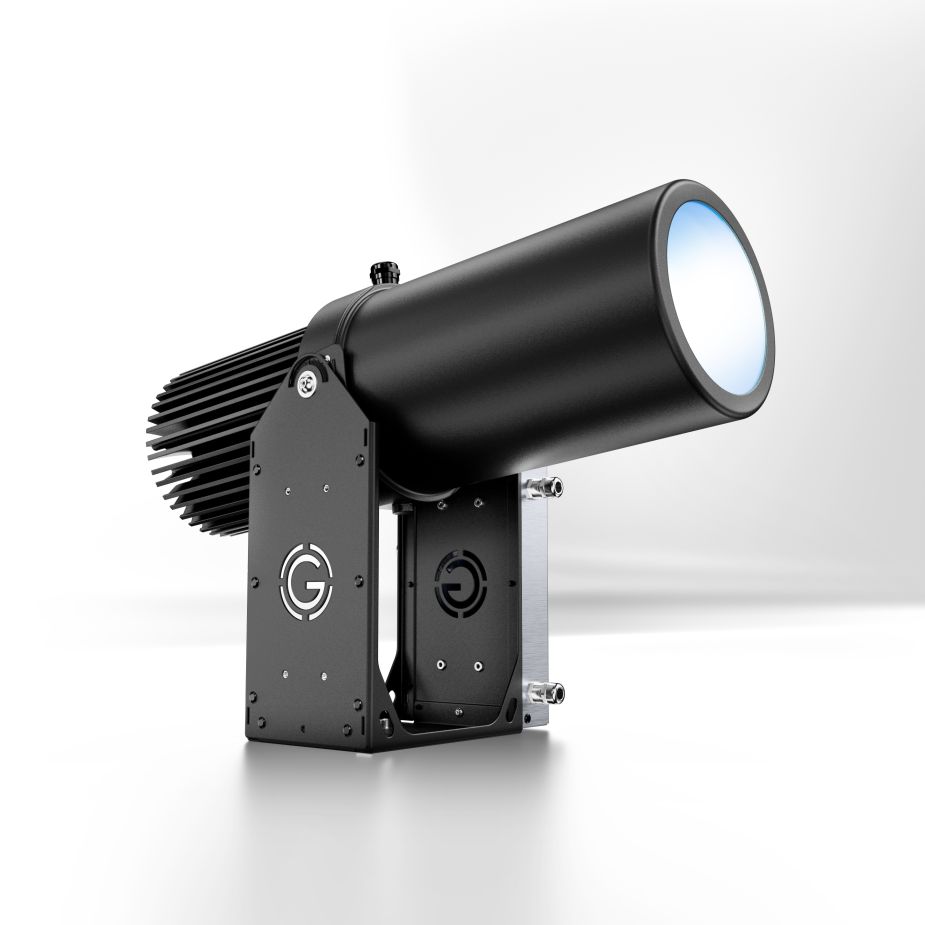

Signum 100W With Optical 90 MM

Extreme power, total durability.
The new 100W LED projector is built to push: compact yet incredibly powerful, designed to deliver hight performance even in the toughest conditions. Its rugged body and innovative
design combine functionality, strength, and style.
Equipped with passive ventilation and an IP65 protection rating, it’s fully shielded from dust, rain, and external agents. But that’s not all: a new cover-opening system makes the maintenance easier than ever, while the ability to quantify the tilt angle of the adjustable body ensures perfect beam alignment.
Easy to handle, impossible to stop.
It’s the latest addition to the Signum family - and with its power and versatility, it sets a new benchmark for the entire range.


Features Of Projection

Type Of Projection

Signals and Pedestrian crossings

Projection Distance In Meters

From 0 to 15 meters


Tech Specs

Material

Aluminium

Protection Rating IP

IP65

Protection Rating IK

IK09

Surface Finishing

Black Painting RAL 9005

Power Mode

110-240V 50/60Hz

Light Source

CITILED COB

Colour Temperature

5.000 °K

Gobo Size

O.D. ø37,5mm - I.D. ø30mm

Power

100W

Source Luminous Flux

11.941 lm

Optical System

90 mm

Angular Aperture

18°

Maximum Brightness At 5m

3425

Optical Efficiency

52%

Total Lumen Output

6.210 lm

Luminous Efficacy

71 lm/W

Optional

  • Controllable with Casambi system via Android and IOS app (power on/off - network creation - batch or individual
    control)
  • WIRELESS proximity sensor activation (network creation up to 32 units - operation under WIFI network or in the Cloud)
  • Compatible with DALI and DMX networking

Weight

8.5 kg

Size

50.4×21.9×34.9 cm


FAQ

Are The Projectors Produced By You?

Yes, the projectors and the gobos are produced by us and are 100% Made in Italy.

Do I Need To Have Specific Technical Skills To Be Able To Use Your Products?

No, the use is very simple: just follow the instructions given in the instruction manual.

What Is The Warranty On Projectors?

The projectors have a 2-year warranty.

Before Buying Your Products, How Can I Ask for Advice?

You can contact us by e-mail at This email address is being protected from spambots. You need JavaScript enabled to view it. and by phone at +39 035 017 6860.

What Data Do I Need To Share To Have A Study Of My Projection Project?

In order to carry out the study of a projection project, it will be necessary to provide us with the following information:

  • The distance between the projector attachment point and the projection surface.
  • A photo of the projection surface.
  • The size of the area to be covered by the projection.
  • The ambient light level.
  • The graphics, if any, to be projected.
Do You Also Take Care Of The Graphic Creation Of The Projection?

If necessary, it is possible, as an additional service, to include the creation of the projection graphics in the offer.

Do You Also Take Care of The Installation?

Not directly.  Nonetheless, our network of partners may be of assistance in this regard.

Do You Have Local Dealers?

Yes. We have an ever - expanding network of partners and distributors.

How Do I Mount The Gobo On The Projector?

You will find mounting directions in your projector’s instruction manual.
We always ship a manual containing mounting instructions with our gobos.
To avoid damaging the gobo during use please follow the instructions below:

  • Mount the Black and White Gobos with the gray side facing the lens.
  • Mount the Color gobos with the black side facing the lens.
